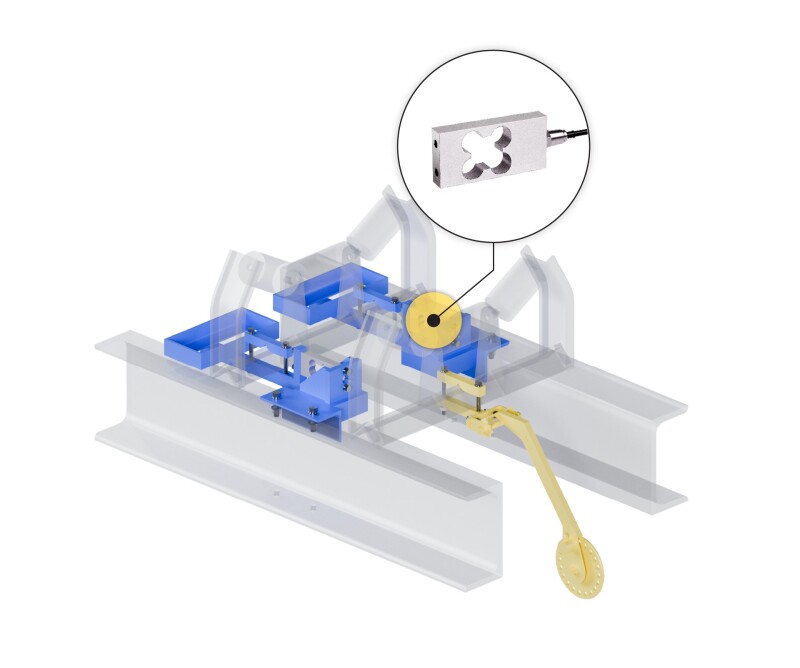

Anyload Weigh & Measure Inc. (Canada) - Press Release: Introducing the CNV100 Conveyor Belt Scale and AN610 Scale Integrator

The CNV100 Conveyor Belt Scale is a flexible, high-performance solution for accurate, continuous material flow measurement across a wide range of industrial applications.

Achieving ≤1% total error in single-idler configurations and supporting throughput of up to 5,000 tonnes per hour, the CNV100 Conveyor Belt Scale delivers reliable performance. Paired with the AN610 Integrator, the system provides stable, repeatable accuracy while simplifying installation, calibration, and long-term maintenance.

CNV100 Key Features:

1. Universal Design for Simplified Installation:
   • Fits belt widths from 16 to 98 inches using a single scale model
   • Integrates into existing conveyor structures without welds or cuts
   • Integrated calibration trays designed to securely hold standard test weights

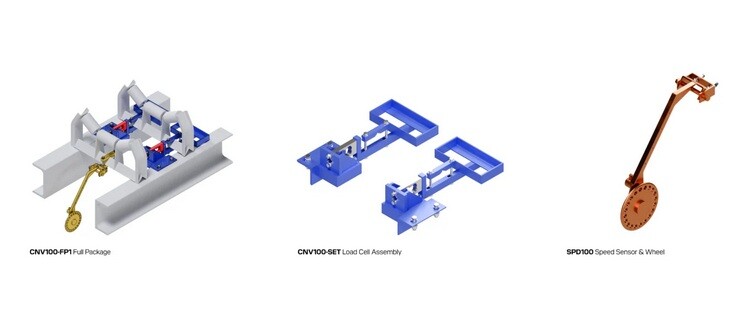

2. Modular Design:
   • Configurable from a single-idler scale to a 2-idler or 3-idler scale
   • Standardized modules for easy expansion
3. Inwardly Mounted Design:
   • Critical components are better protected from dust, moisture, etc.
   • Compact and space-efficient
4. Belt Speed Measurement:
   • SPD100 speed sensor and wheel with light-pulse speed detection
   • Reliable speed sensing up to belt speeds of 800 ft/min (4 m/s)
   • Anti-skid friction wheel for reliable traction

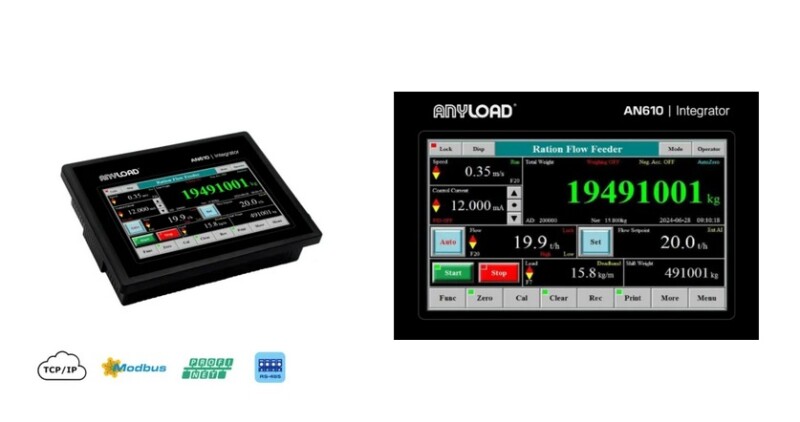

AN610 Key Features:

1. High-Accuracy, High-Speed Processing:
   • 400 Hz sampling rate captures rapid load changes
2. Advanced Anti-Vibration Digital Filtering:
   • Configurable digital filtering minimizes the effects of vibration, impact loading, and mechanical noise.
3. Full-Colour Touchscreen Interface:
   • 7-inch TFT colour touchscreen with fast response and high brightness.
   • Simplifies system configuration, calibration, and real-time monitoring.
4. Industrial Communication Integration:
   • Communication options include RS-485, Profibus-DP, Profinet, and Ethernet Modbus TCP.

Typical Applications:

• Bulk/aggregates
• Waste management and recycling
• Agriculture
• Mining

Why Choose the ANYLOAD CNV100 Conveyor Belt Scale and AN610 Integrator?

The ANYLOAD CNV100 Conveyor Belt Scale paired with the AN610 Integrator delivers a complete solution for accurate, continuous material flow measurement in demanding industrial environments.

Its universal and modular design simplifies installation and expansion. The AN610’s high-speed processing, digital filtering, and intuitive touchscreen interface ensure stable, repeatable measurement and seamless system integration.
